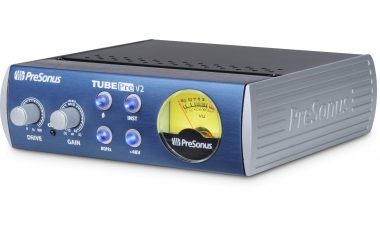

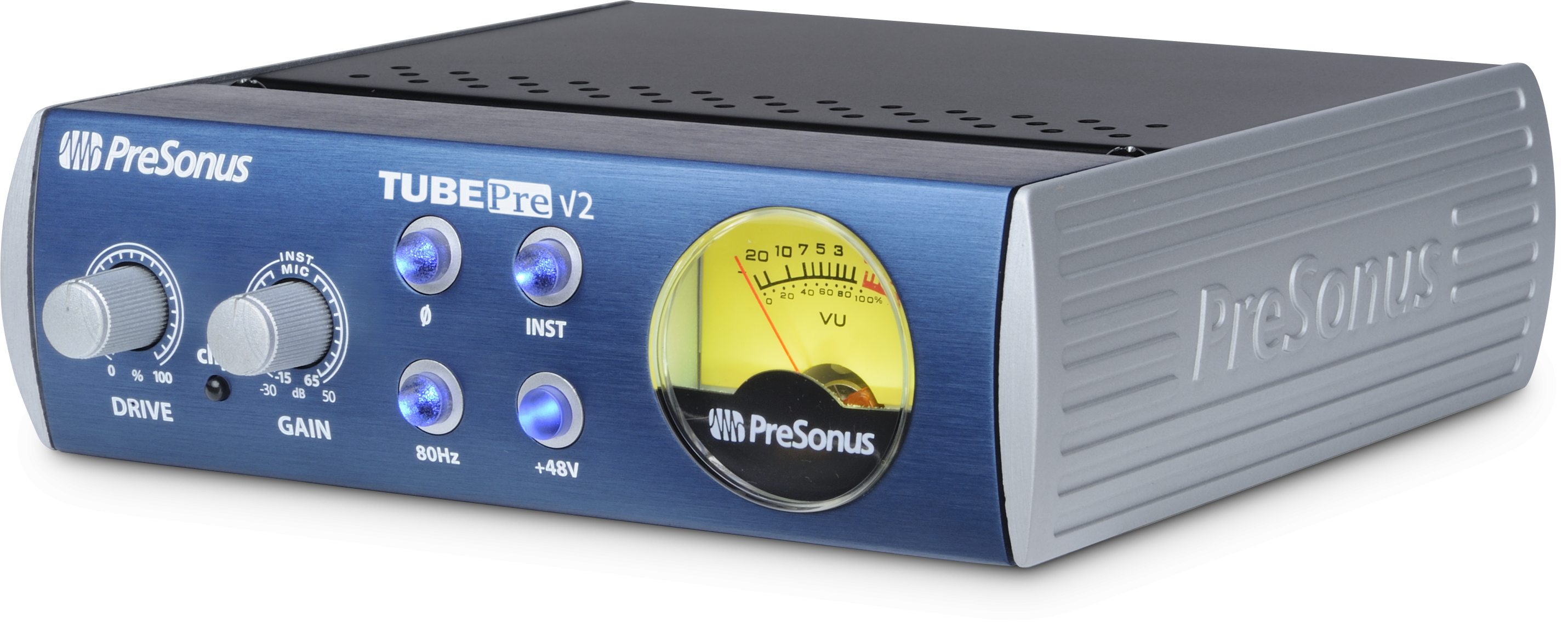

TubePre V2 | 单通道电子管话筒前置放大器 / DI Box

产品简介

设计紧凑且负担得起,一直流行的 TubePre V2 专业电子管前置放大器具有令人印象深刻的动态范围和细节。采用我们广受赞誉的 XMAX  A 级固态前置放大器,在信号路径后跟着一个 12AX7 真空管阶段。双伺服(无电容器)增益阶段,即便是提高信号到冒烟的热水平也不会有明显增加的噪音。


一个具有令人印象深刻的动态范围和细节的前置放大器。

设计紧凑且负担得起,一直流行的 TubePre V2 专业电子管前置放大器采用我们广受赞誉的 XMAX  A 级固态前置放大器,在信号路径后跟着一个 12AX7 真空管阶段。双伺服(无电容器)增益阶段,即便是提高信号到冒烟的热水平也不会有明显增加的噪音。离散元件和高压操作提供了动态范围和细节,这在同类的单通道管前置放大器中是没有的。TubePre V2 质地坚固,是吉他和话筒类产品的绝佳选择。


From gentle warmth to total fuzz with the twist of a knob.

XMAX microphone preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound garnering them rave reviews from users and the media alike. The 12AX7 vacuum tube that follows the XMAX in the TubePre V2 was hand-selected and carefully tested for electrical conformity and freedom from microphonics. Twist the Drive saturation control to add the “color” that only a hand-selected 12AX7 can deliver — from gentle warmth to total fuzz.


A versatile tool that's built to travel.

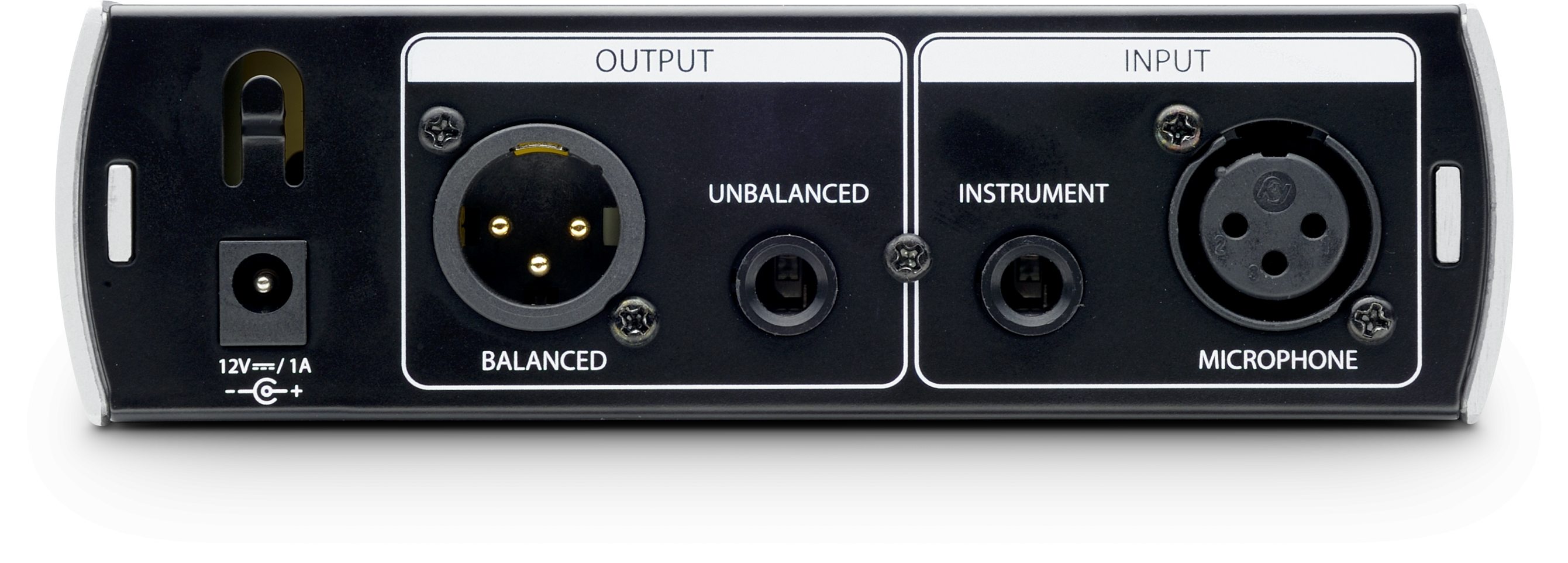

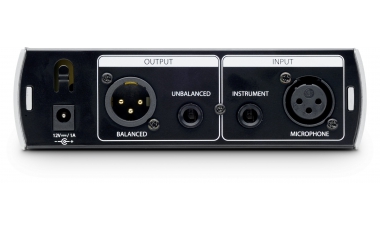

Housed in a rugged case that is built to travel, the TubePre V2 rear panel sports separate unbalanced, ¼” instrument and balanced, XLR mic inputs and unbalanced ¼” and balanced XLR line outputs. Use it as a straight-up tube preamp or a dynamite direct box (DI) for guitars and basses. We’ve provided all of the extras you need, including a highpass filter, phantom power, polarity reverse, and a backlit VU meter. Yet with all its features, it’s small enough to carry almost anywhere—or simply screw-mount it to a standard rack tray.


Great sound, live or in the studio.

Live or in the studio, the TubePre V2 is a great-sounding tool you’ll use on a variety of sources. Add just the right amount of tube distortion to guitars, basses, and mic signals. Go lightly for gentle warmth or go all-out for solid crunch—it’s up to you. So give your ears a treat and test the TubePreV2 at your favorite PreSonus® dealer. Then check out the price— and prepare to be amazed. Because with PreSonus, big sound does not have to cost big money.


技术指标

XMAX Class A放大器输入过程

12AX7 双伺服真空管输出过程

输入增益控制

48V幻象电源

80 Hz高通滤波器

-20 dB垫子

乐器输入选择

极性反转切换

背光式VU表

Clip LED

输入输出

- 1条不平衡1/4"乐器输入
- 1条平衡XLR话筒输入
- 1条不平衡1/4"线路输出
 -1条平衡XLR线路输出

物理

- 紧凑的1/3U外盒
- 外置12 V直流电,1A电源供应



技术参数

乐器输入
连接类型1/4” TS, female, 不平衡
输入抗阻1 MΩ
模拟输出
连接类型XLR, male, 平衡 1/4” TS, female, 不平衡
最大输出+20 dBu
输出抗阻51Ω
Tube Stage
类型12AX7
电源
外接电源转换器+12 VDC, 1A, center-pin positive
PSU Barrel 体积5.5 mm O.D., 2.1 mm I.D., 9.5 mm长
物理参数
体积1/3U安装机架
高度1.75” (44.45 mm)
深度5.5” (139.7 mm)
宽度5.5” (139.7 mm)
重量5 lb. (2.27 kg)
